Rexroth A4VG series 32

Features:Swashplate design for hydrostatic drives in closed circuit.

1:The flow is proportional to the drive speed and displacement.

2:The flow can be infinitely varied by adjusting the swashplate angle.

3:Flow direction changes smoothly when the swashplate is moved through the neutral position.

4:A wide range of highly adaptable control devices with different control and regulating functions, for all important applications.

5:Two pressure-relief valves are provided on the high-pressure side to protect the hydrostatic transmission (pump and motor) from overload.

6:The high-pressure relief valves also function as boost valves.

7:The integrated boost pump acts as a feed pump and control pressure supply.

8:The maximum boost pressure is limited by a built-in low pressure relief valve.

9:As standard with integrated pressure cut-off

share to:

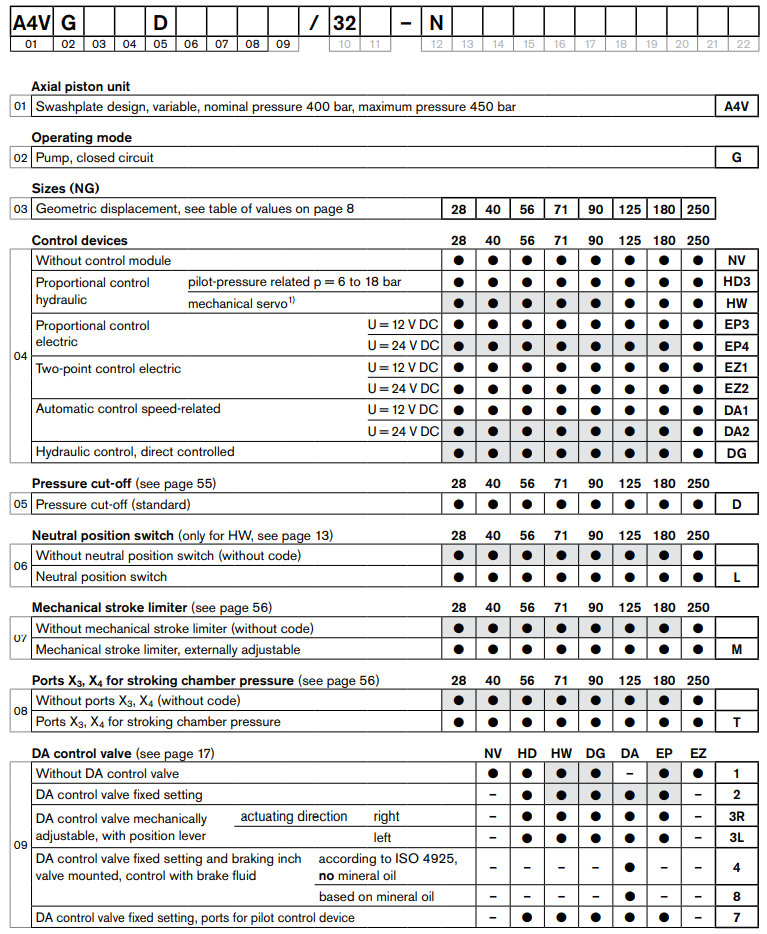

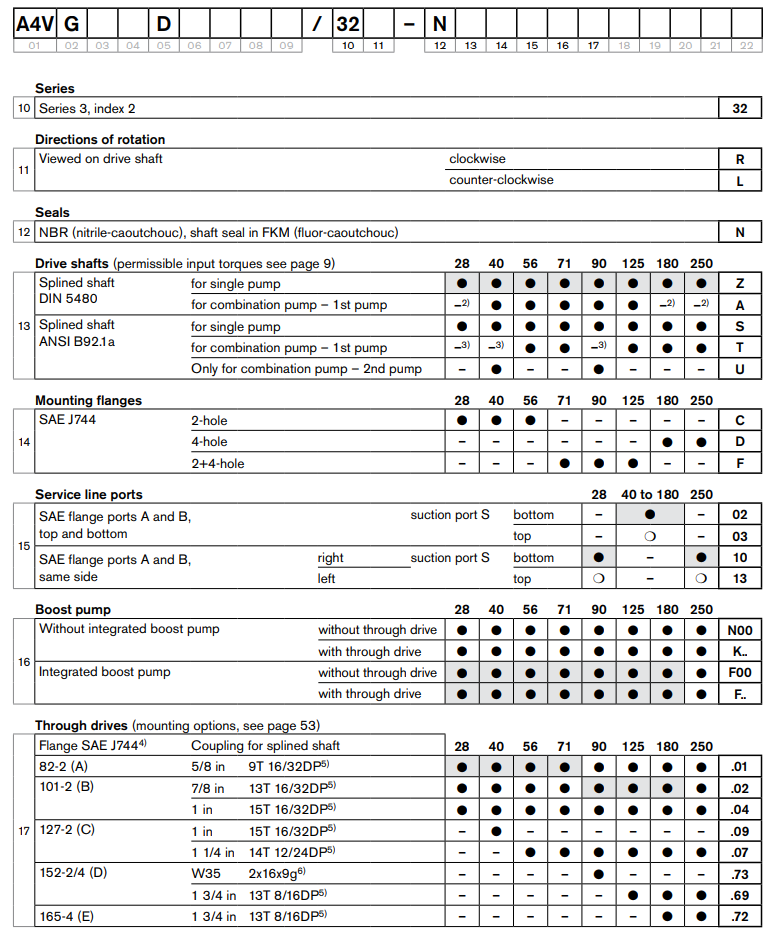

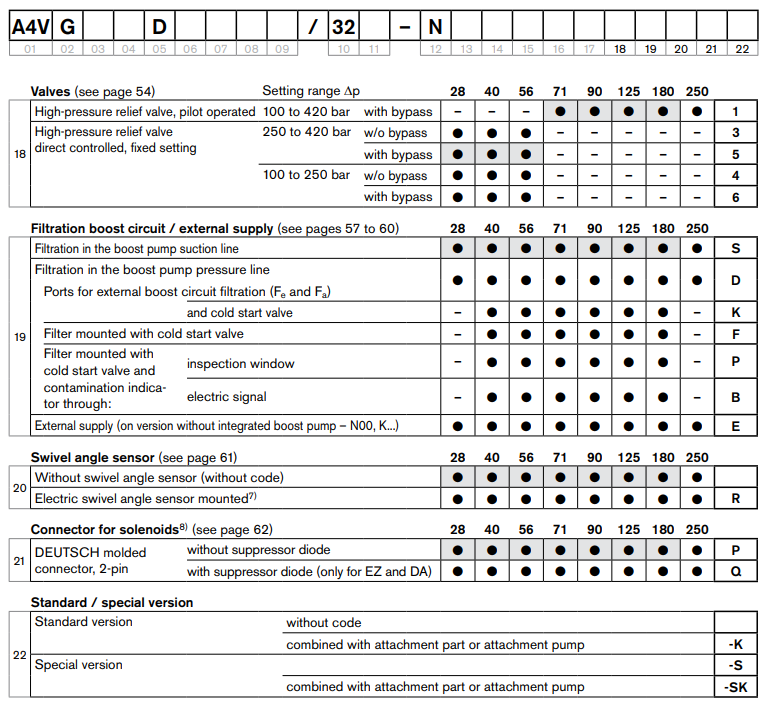

Specifications
